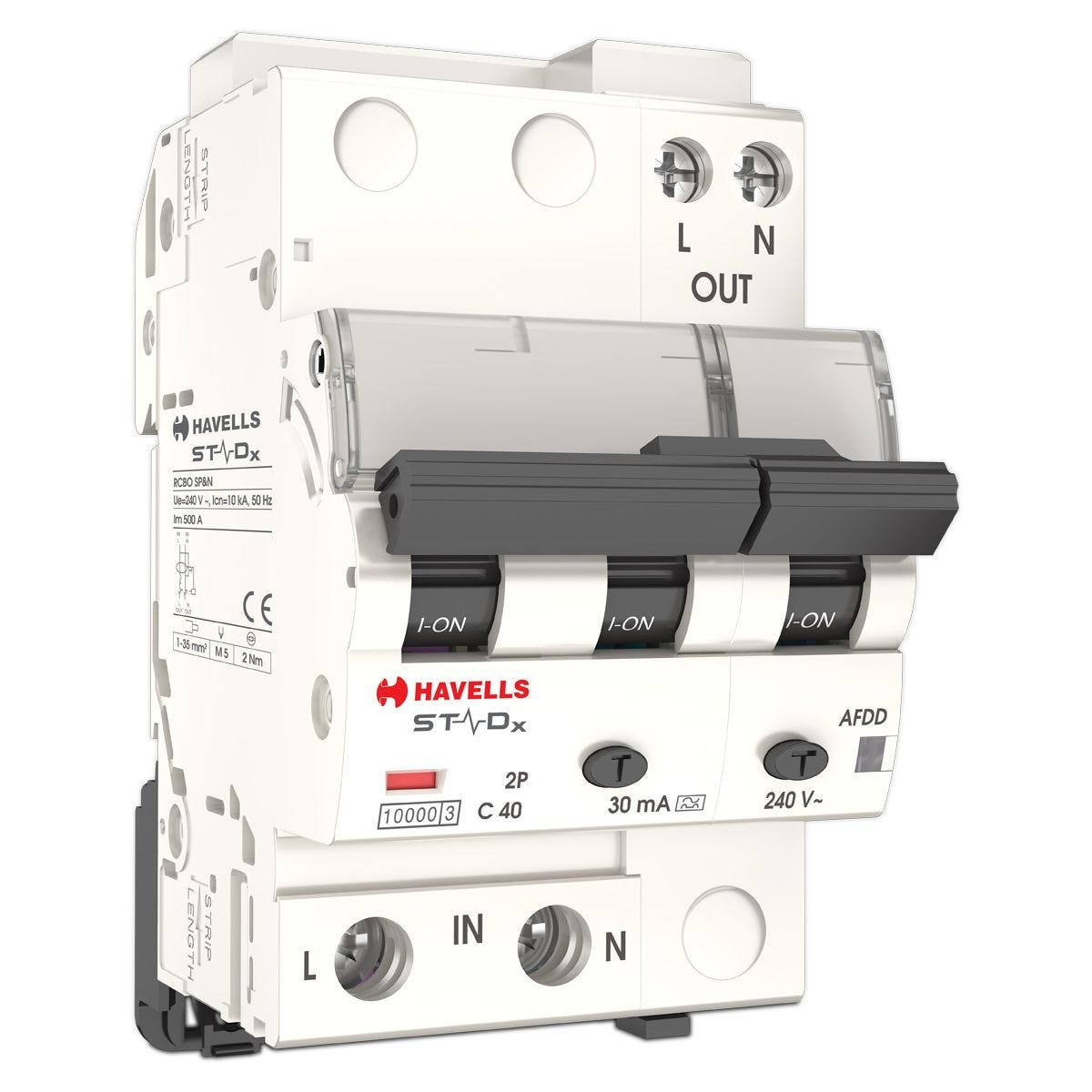

AFDD with RCBO
Out of stock
SKU
DHAZCNSNF040
Special Price
₹ 12 390.00
(incl. of all taxes)
MRP
₹ 21 476.00
42% Off
Net Quantity : 1 N
Key Features
- Application : For industrial and commercial purposes
- Rating : 40 A
- Specification : IS/IEC 62606 & IEC 60898-1, IEC 61009-1
- Note: Product images are for illustrative purposes and may differ from the actual product
Delivery Details
Buy In Bulk
Looking to make bulk purchases? Enquire Now
Total
Special Price
₹ 12 390.00
(incl. of all taxes)
MRP
₹ 21 476.00
42% Off
Features
Documents
Inscription Window
Ensures circuit identification and hence reduces maintenance downtime.
Large Cable Terminals
Terminals are suitable for cables up to 35 mm² cross section area.
Safety Terminals & Dual Termination
They guide the cable towards cage terminal and avoid improper cable termination. Both fork and pin type busbars can be used.
Bi Stable Clip
Device is equipped with a dual position din clip which makes it easier to change a device from a device bank connected to a busbar, without disturbing existing wiring.
Test Button & LED Indication
Test button for regular inspection/testing.
LED Indicator
It indicates device tripping status and operation, also helps in easy maintenance during down time.
Technical Specifications
- Manufactured ByHavells India Ltd.
- Country Of OriginIndia
- Tightening Torque2 Nm (Bottom) / 1.2 Nm (Top)
- Rated Frequency50 Hz
- Ambient Temperature-5 °C to 40 °C
- Standard ComplianceIS/IEC 62606 & IEC 60898-1, IEC 61009-1
- Rated Current16 A, 32 A & 40 A
- Rated Voltage240 V AC
- No. of Poles1P+N
- Energy Limit Class3
- IndicationsLED Indication (ON - Green, OFF - Blank)
- Tripping Characteristic CurveC Curve
- Ingress ProtectionIP 20
- Mounting TypeClip on DIN Rail (35 mm x 7.5 mm)
- Terminal Supply SideBottom/Top
- Storage Temperature-20 °C to 60 °C
- Rated Breaking Capacity10 kA
- Min Threshold for Protection Against Overvoltage270 V ± 5 %
- Operating Characteristics in Case of Residual CurrentsA Type
- Rated Residual Operating Current30 mA
