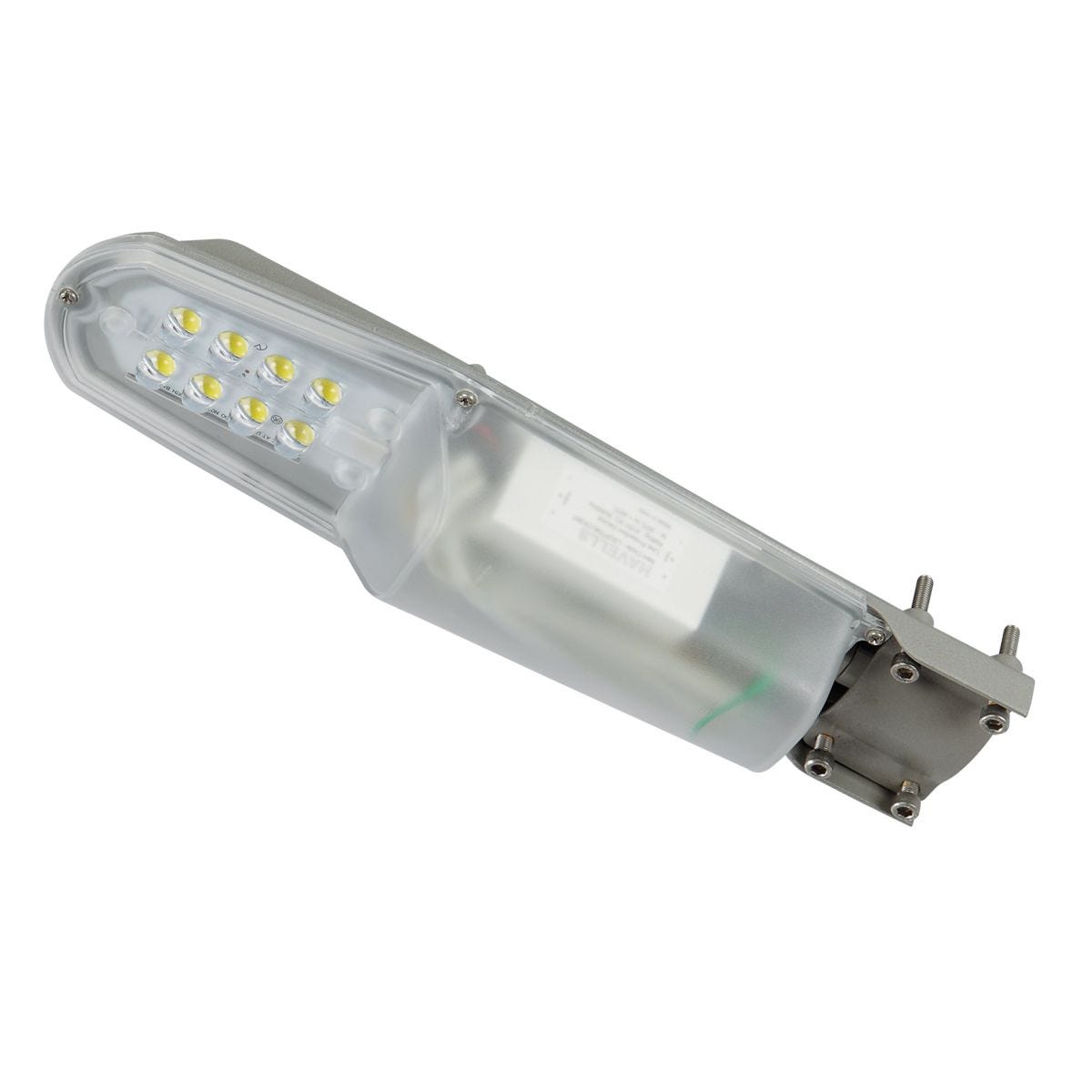

Endura Citylite Platinum Plus

Name: Endura Citylite Platinum Plus
Brand: Business
SKU: ENDURACITYLITPLATPLUSSL30WLED757SASYBOPC
Price: 99999999.00 INR
Availability: InStock

30 W ( 3000 System Lumens )

In stock

SKU

ENDURACITYLITPLATPLUSSL30WLED757SASYBOPC

₹ 9 99 99 999.00 (incl. of all taxes)

Be the first to review this product

Net Quantity : 1 N

Key Features

High Efficacy : LED street lights with efficacy >105 lm/W
Wide Voltage Operating Range : 140 V - 270 V
Wide temperature operating range : -10 °C to +50 °C
Surge Protecion : 4 kV driver builtin surge protections and additional 10 kV surge protecion device

Features
Specs
Reviews
Downloads

Skip to the end of the images gallery

1 / 1

Skip to the beginning of the images gallery

Features

Housing & Finish

Pressure die-cast aluminium alloy for housing (heat sink) for effective thermal management, sturdiness & excellent corrosion resistant. Cable gland is used for maintaining ingress protection. Polyster powder coated grey finish after phosphochromate treatment.

Optics

PC lens to ensure better uniformity of light distribution. (For detailed Photometric data, Please refer LM79 report & IES file).Tempered protective custom moulded polycarbonate diffuser, thermal shock and impact resistant (IK-07) fixed to the housing by SS screws.

Light source

High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >140 lm/W.

Electronic Driver

Powered by Integral, isolated electronic LED driver (SMPS based constant current supply) with lower THD, Output Open / Short Circuit protection, Over Voltage protection, Phase to Phase protection, Surge Voltage protection & other safety test as per IS 15885 Part-2/Sec 13.
