Tycoon (Opal)

70 W ( 2800 System Lumens )
In stock
SKU
TYCOONPT70WLED730PSYMTOPC
₹ 9 99 99 999.00 (incl. of all taxes)
Be the first to review this product
Net Quantity : 1 N

Key Features

  • Long life : Long life & photobiologically safe LED’s
  • Environment friendly : Environment friendly as it does not containMercury
  • Delivers excellent illumination & comfort :
  • High performance electronic driver ensures zero maintenance :

Tycoon (Opal)

₹ 9 99 99 999.00 (incl. of all taxes)
Out Of Stock
Make an Enquiry

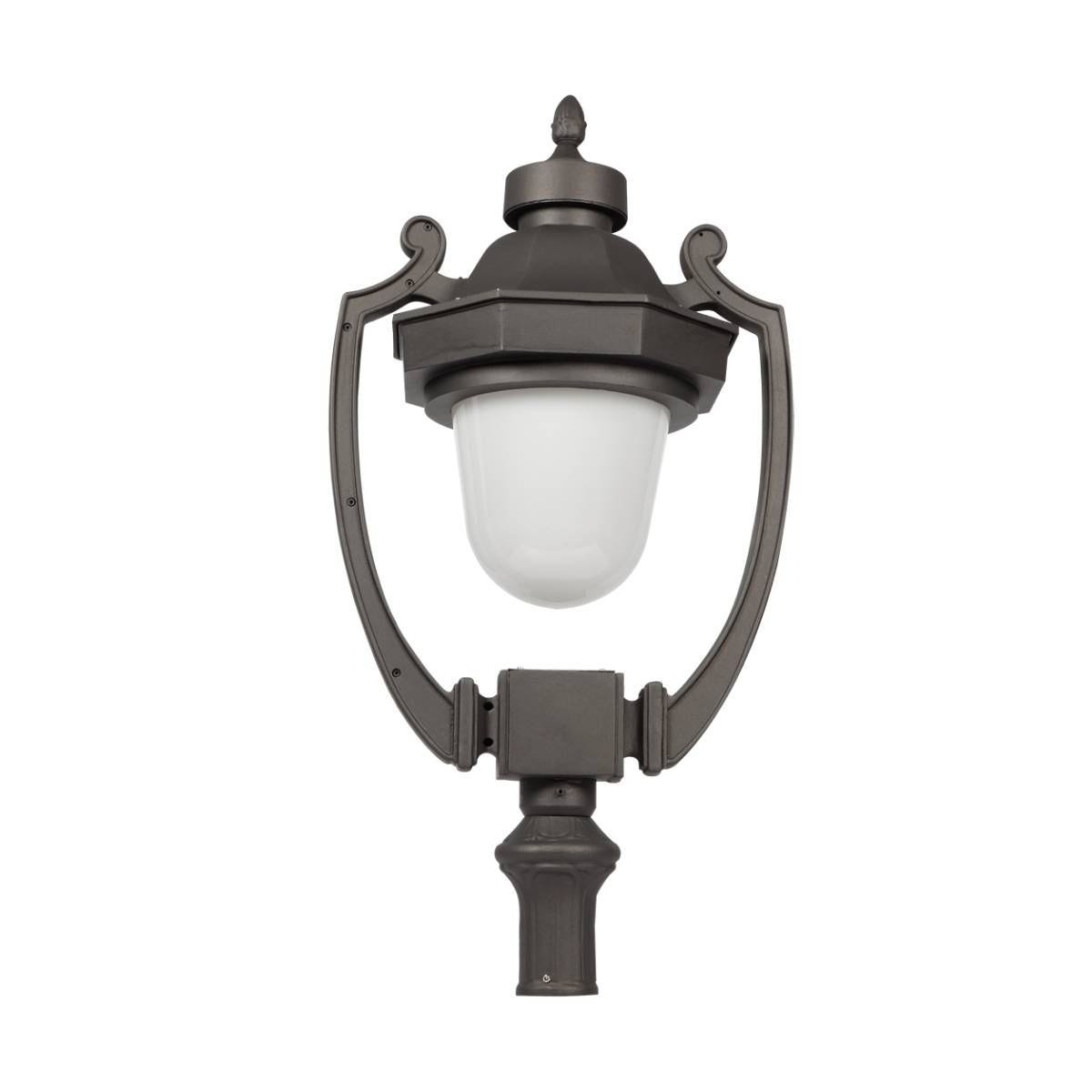

main product photo
1 / 1

Housing & Finish

Elegantly designed die-cast aluminum housing with heat sink for efficient thermal management, sturdiness and excellent corrosion resistant. Al. canopy with classic design to enhance the aesthetic of the fixture. Two nos. die-cast aluminum arms & AL. Die cast Spigot are provided to support the housing & Epoxy powder coated black after phosphochromate treatment.

Optics

High quality UV Stabilized poly carbonate opal cover is used over LED module to provide glare free Light.

Light source

High efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >155 lm/W to ensure better uniformity of light distribution (For detailed photometric data,please refer LM79 report & IES file).

Electronic Driver

Powered by built-in, isolated potted electronic LED driver with APFC (SMPS based constant current supply) with lower THD, Output Short / Open Circuit protection, Over Voltage protection, Surge Voltage protection upto 10 kV with external SPD & other reliability test as per IS 15885 Part- 2/Sec 13

Mounting

Suitable for pole mounting with OD of Ø76 mm with 3 nos. allen screws M8x16 mm.

  • Dimension
    60 cm x 37.5 cm x 103 cm
  • Class Declaration
    Class I
  • IK Rating
    IK07
  • IP Rating
    IP65
  • Colour of Fixture
    Grey
  • Colour Temperature
    3000 K
  • CRI
    ≥80
  • Mains Current
    0.35 A
  • Nominal Voltage
    240 V
  • Power Factor
    ≥0.95
  • System Lumens
    2800 lm
  • THD
    ≤10 %
  • Wattage (W)
    70 W
  • Weight
    18 kg
