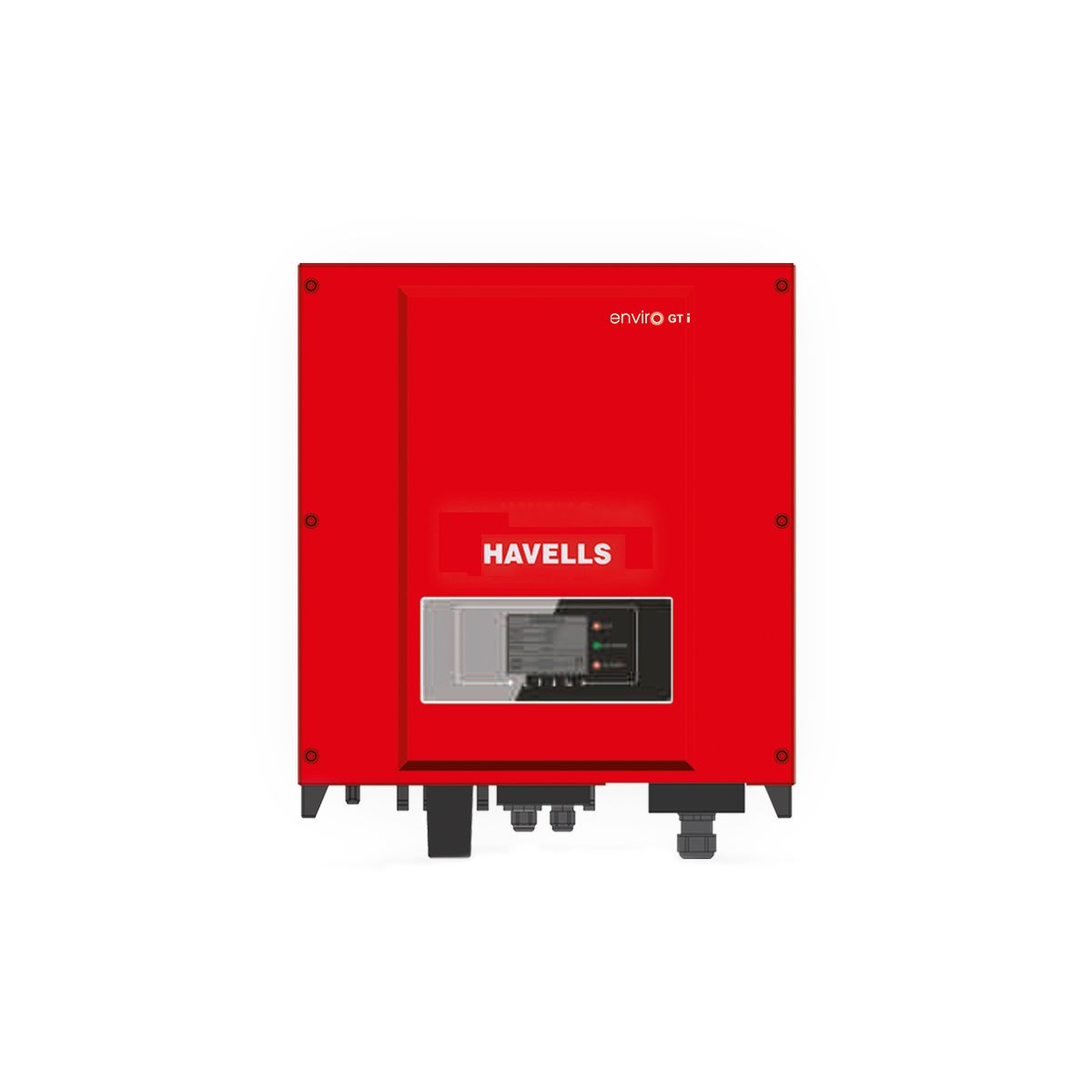

Enviro GTi 11000 TX

10 kW
In stock
SKU
Enviro_GTi_11000_TX
₹ 9 99 99 999.00 (incl. of all taxes)
Be the first to review this product
Net Quantity : 1 N

Key Features

  • DC Switch : Built in DC switch for solar DC disconnection
  • BIS and IEC Certified : IEC 62116, IEC 61727, IEC 61683, IEC 60068(1,2,14,30), IEC 62109-1/2, EN 61000-6-1,6-2,6-3,6-4 & BIS Certified
  • LCD & LED Display : 101.6 mm LCD display for checking generation data with LED for fault, alarm indication
  • Warranty : 10 Year Warranty

Enviro GTi 11000 TX

₹ 9 99 99 999.00 (incl. of all taxes)
Out Of Stock
Make an Enquiry
main product photo
1 / 1

Three phase DUAL MPPT suitable for Commercial/ Industrial application.

High Efficiency

Inverter efficiency up to 98.3 %

Remote Monitoring, Communication and Data Storage

Free life time web and APP based monitoring, WiFi/ GPRS data logger with 3 months storage and inverter had SD card for 25 years data storage.

  • Maximum Efficiency
    98.30%
  • Self Consumption at Night
    < 1 W
  • Cooling
    Natural
  • Degree of Protection
    IP 65
  • Dimensions (LxWxH)
    45.7 cm x 45.2 cm x 20.2 cm
  • Operating Temperature Range
    -25 °C to +60 °C
  • Topology
    Transformer less
  • Weight
    22 kg
  • Max Input Current Per MPPT
    11:00 AM
  • Maximum DC Input Short circuit Current Per MPPT
    14 A
  • Maximum Input Voltage
    1000 V
  • MPPT Operating Voltage Range
    160 V - 960 V
  • Number of MPPT & 47 String Per MPPT
    2 & 1
  • Rated Input Voltage
    600 V
  • Grid Frequency Range
    45 Hz - 55 Hz
  • Grid Voltage Range
    310 V AC - 480 V AC
  • Maximum AC Power
    11000 VA
  • Maximum Output Current
    ( 3 * 16.9 ) A
  • Nominal Grid Voltage
    3/N/ PE , 220 V AC / 380 V , 240 V AC / 415 V AC
  • Rated Output Current
    ( 3 * 16.9 ) A
  • Rated Power
    10000 W
  • Over Temperature
    Yes
  • Over Voltage, Over current, Earth Fault Protection
    Yes
  • SPD
    MOV : Type III Standard
