Electrical Fixed ACB with Four Pole having Microprocessor based Release IPR 2

In stock
SKU
IHAFE4206
₹ 99 99 999.00 (incl. of all taxes)
Be the first to review this product
Net Quantity : 1 N

Key Features

  • Different Current Rating provide selection option depending on varied Load Conditions
  • Mid Version : Circuit Breaker offers all basic protections along with LCD Display and Fault History
  • Measurement Function Available : Facility of Current, Voltage and Energy measurement available

Electrical Fixed ACB with Four Pole having Microprocessor based Release IPR 2

₹ 99 99 999.00 (incl. of all taxes)
Out Of Stock
Make an Enquiry

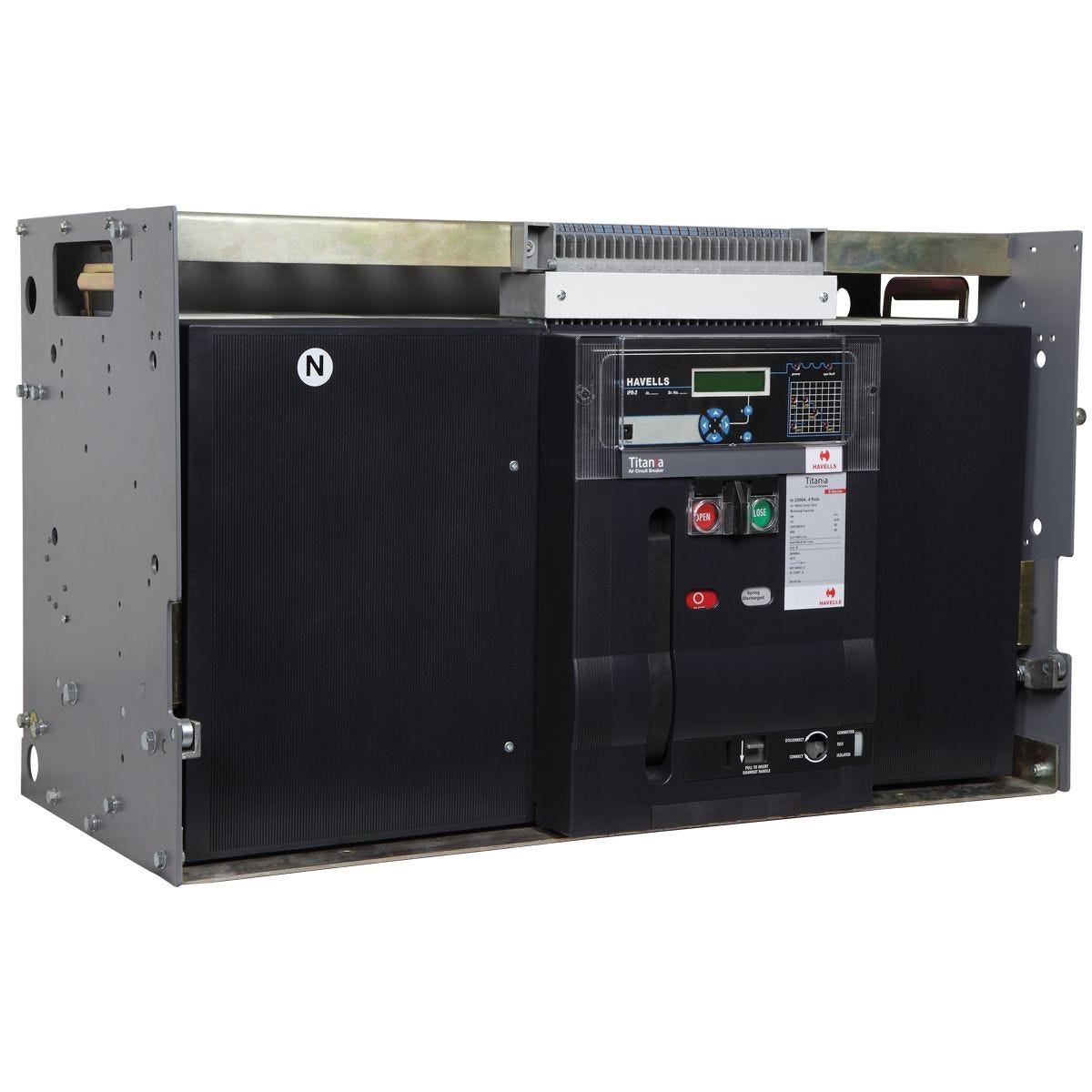

main product photo
1 / 1

Function Check Facility Available

It allows to individually check the performance of respective functions of the release

Pre Indication of Fault condition

Advance Indication of Fault condition available with the help of Pre Trip Alarm facility

Offers Self Monitoring

Independently the release can be tested for all the functions

Provision of Operation Counter

It records the number of ON / OFF operation of the circuit breaker

Fault History Facility Available

It records and displays last 100 faults hence enables planning of maintenance schedule

Password protected

The release is Password protected thereby restricting the access of unauthorised person

Current & Time Setting Available

Setting of Current & Time Delay is totally error free & is user friendly

Close and Precise protection

It is Equipped with 16 bit micro controller, these are far more reliable and have high level of repeat accuracy when compared to thermal magnetic and static releases

Monitors & Measures Actual Current

It offers True RMS sensing with total immunity to system disturbances

No external Power Required

It is Self-Powered by built in current transformer

  • Breaking Capacity Withstand Capacity
    Icw = 50 kA & 65 kA for 630 A - 2000 A; Icw = 75 kA for 2500 A; Icw = 100 kA for 3200 A - 4000 A
  • Humidity
    0 - 90%
  • No. of Poles
    Four
  • Operating Altitude
    2000 m
  • Rated Frequency
    (50/60) Hz
  • Rated Impulse Voltage
    12 kV
  • Rated Insulation Voltage
    1000 V AC
  • Rated Operational Voltage
    690/250 V AC
  • Rating Range
    400 A - 6300 A
  • Reference Standard
    IS / IEC 60947-2
  • Type of Operation
    Electrical
  • Utilization Category
    B
  • Version
    Fixed Type
