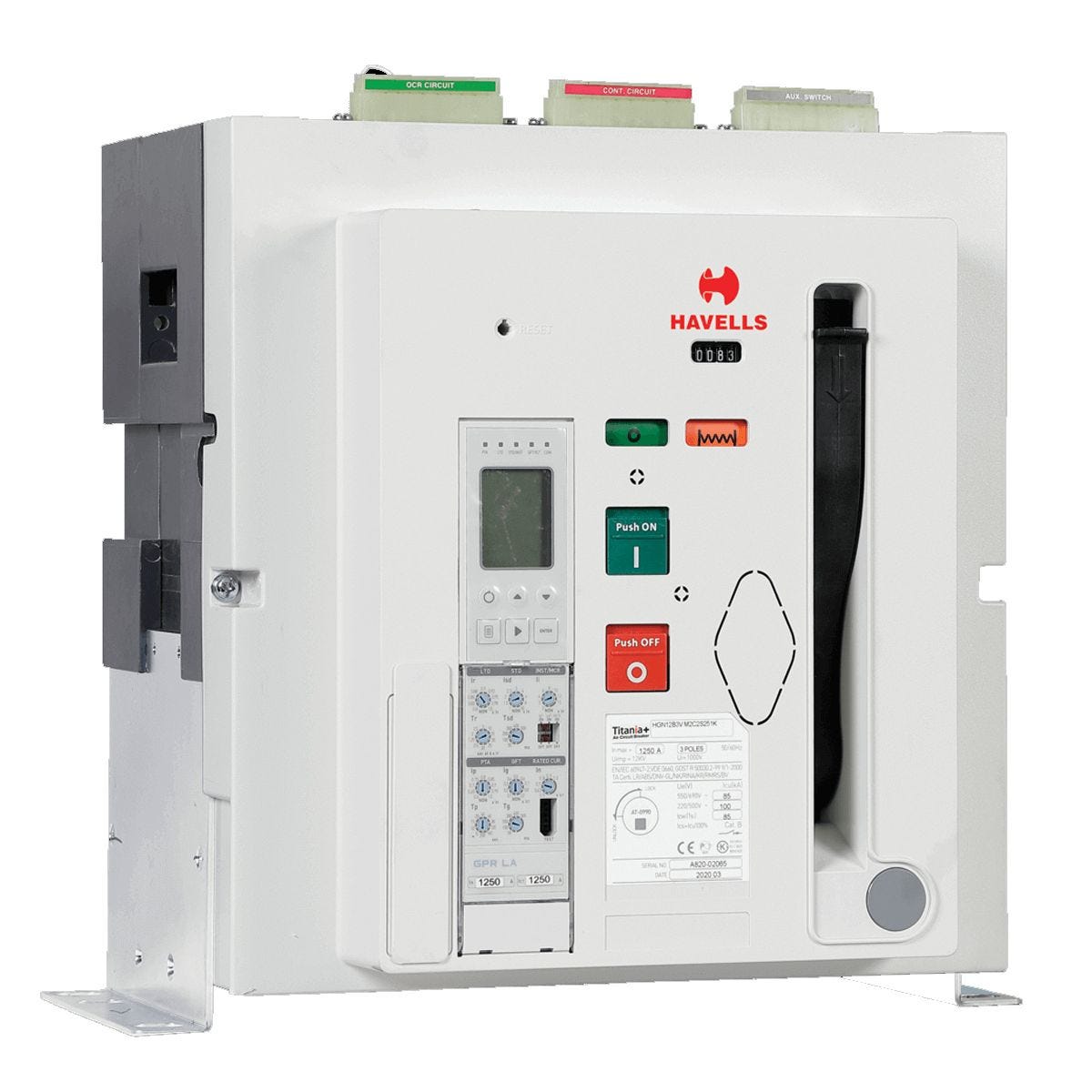

Titania Plus Air Circuit Breaker

Name: Titania Plus Air Circuit Breaker
Brand: Business
SKU: IHBTV11732C230
Price: 613140.00 INR
Availability: InStock

In stock

SKU

IHBTV11732C230

₹ 6 13 140.00 (incl. of all taxes)

Be the first to review this product

Net Quantity : 1 N

Key Features

Different current rating provide selection option depending on varied Load Conditions
Version : Manual and Electrical, Fixed & Draw out
Release Protection Features : Release available with basic protection functions LSIG and advanced protection as LCD Display, ZSI, Modbus RS485, Power monitoring, Temperature monitoring, Fault recording and storage.
Ics = Icu = 100 % : Service breaking capacity, 100 % x Icu is realized by enlarging breaking capacity with internal limit current.

Features
Specs
Reviews
Downloads

Skip to the end of the images gallery

1 / 1

Skip to the beginning of the images gallery

Features

Space saving in the panel and has the conductive path insulated with double shield i.e. Cover & Facia

Advance indication of fault condition available with the help of pre trip alarm facility

Zone selective interlocking function involves the breaker in the fault sector detecting malfunction for selective protection coordination. The circuit breaker in the fault sector sends a lock signal to the back-up protection circuit breaker by force to delay the operation and the circuit breaker in the fault sector operates instantaneously to enable selective protection coordination of the system.

Modbus-RTU/RS-485
NFC Communication (Near Field Communication)

Allows precise monitoring & control of circuit with the help of varied Internal & External accessories.

3 Phase current / voltage / power / power factor / power quantity / phase / demand

Voltage / Current Harmonics ( 1^st ~ 63^th)
- 3 phase waveform
- TDH, TDD

Technical Specifications

Breaking Capacity Withstand Capacity
Icu = Ics = 65 kA to 150 kA for 630 A - 6300 A
Humidity
0 % - 90 %
No. of Poles
Three & Four Pole
Operating Altitude
2000 m
Rated Frequency
50 Hz / 60 Hz
Rated Impulse Voltage
12 kV
Rated Insulation Voltage
1000 V AC
Rated Operational Voltage
690 V AC
Rating Range
630 A - 6300 A
Reference Standard
IS / IEC 60947-2
Type of Operation
Manual & Elecrical
Utilization Category
B
Version
Manual & Electrical, Fixed & Draw out Versions
