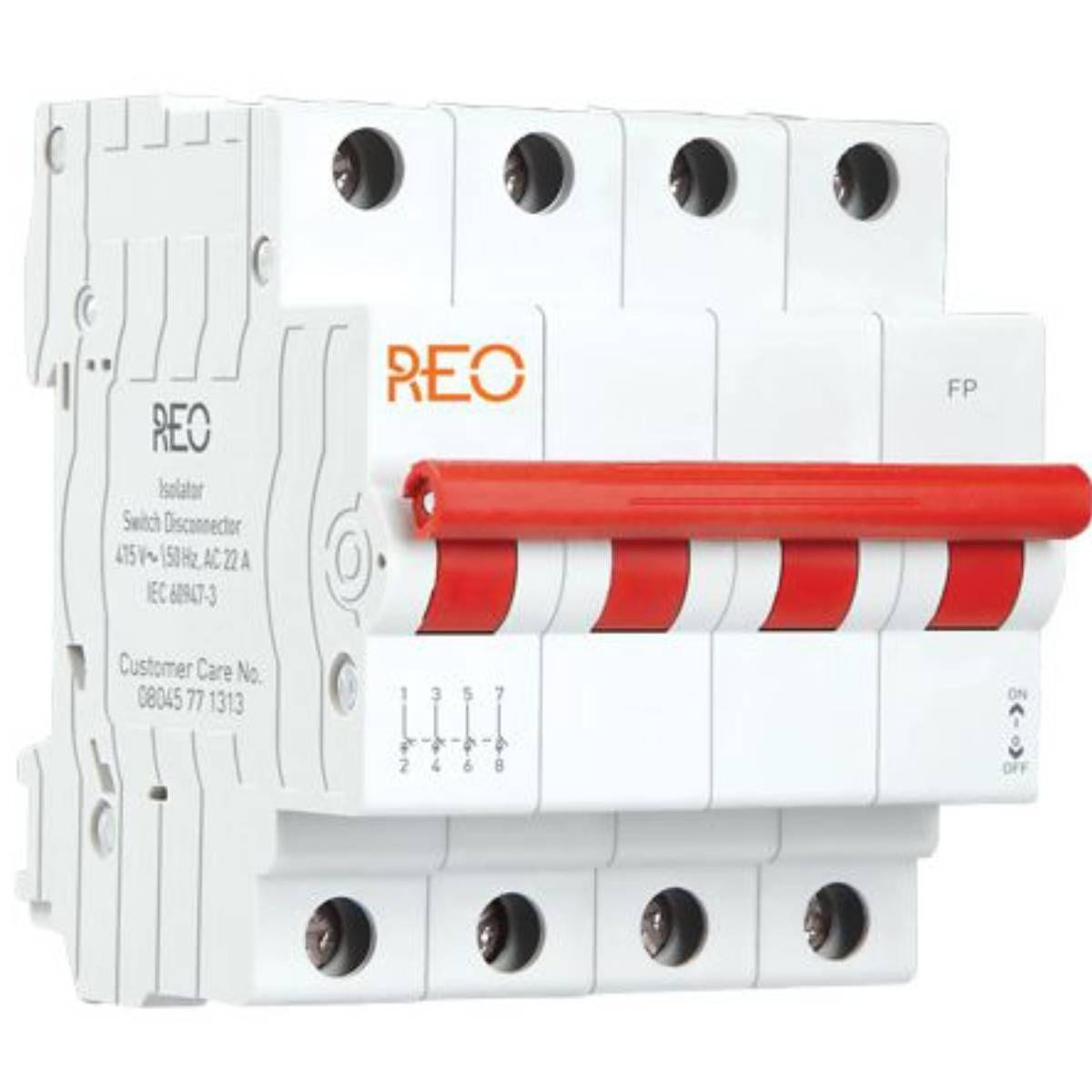

FP Switch Disconnector
63 A
In stock
SKU
DHMXIFPX063
Special Price
₹ 765.00
(incl. of all taxes)
MRP
₹ 1 180.00
35% Off
Net Quantity : 1 N
Key Features
- ETP Grade Copper
- IP 20 Design
- Superior Air Circulation
- IS / IEC 60947-3
Delivery Details
Buy In Bulk
Looking to make bulk purchases? Enquire Now
Total
Special Price
₹ 765.00
(incl. of all taxes)
MRP
₹ 1 180.00
35% Off
Technical Specifications
- Country Of OriginIndia
- TypeFour Pole
- Rated Frequency50 Hz
- Ambient Temperature-5 °C to +55 °C
- Rated Current40 A - 63 A
- Terminal Capacity (Maximum)35 mm²
- Shock Resistance40 mm free fall
- Rated Insulation Voltage690 V
- Rated Impulse Voltage4 kV
- Protection ClassIP20
- Installation PositionVertical / Horizontal
- Standard ConformityIS / IEC 60947-3
- No. of Poles (Execution)2P, 4P
- Rated Voltage (Ue)415 V
- Utilization CategoryAC 22 A
- Electrical / Mechanical Endurance (No. of Operations)10000
- Mounting Din Rail35 mm x 7.5 mm
